SHELVING OPTIONS
Two way keyhole slots and snap-in rivet design make assembly simple while maintaining structural integrity.
A durable “box” form shelf design allows shelves to be simply inserted into tabs on uprights.
Secures shelving within its double wall construction and unique interlocking keyhole slot design for a smooth, clean appearance.
NSF approved shelving that reduces dust build-up and improves visibility for clean environments.
The durable steel shelves have welded corners, triple-bent flanges, and attach with compression clips.
Allows clear and convenient access when storing heavy, bulky loads up to 4,000 lbs per shelf / 25,000 lbs per unit.
Provides the widest range of flexibility for pallet and heavy duty storage up to 7,000 lbs per shelf / 31,500 lbs per unit.
Two way keyhole slots and snap-in rivet design make assembly simple while maintaining structural integrity.
A durable “box” form shelf design allows shelves to be simply inserted into tabs on uprights.
Secures shelving within its double wall construction and unique interlocking keyhole slot design for a smooth, clean appearance.
NSF approved shelving that reduces dust build-up and improves visibility for clean environments.
The durable steel shelves have welded corners, triple-bent flanges, and attach with compression clips.
Allows clear and convenient access when storing heavy, bulky loads up to 4,000 lbs per shelf / 25,000 lbs per unit.
Provides the widest range of flexibility for pallet and heavy duty storage up to 7,000 lbs per shelf / 31,500 lbs per unit.
Provides storage solutions for the walls of your stockroom, making them an effective use of space.
Two way keyhole slots and snap-in rivet design make installation simple. No clips, sway braces, corner gussets or additional hardware needed.
Shelves adjust in 1-1/2” increments for optimum flexibility
Handle extra heavy loads with extra center support.
Configure units up to 96” wide by 60” deep with Rivet Style channel beams

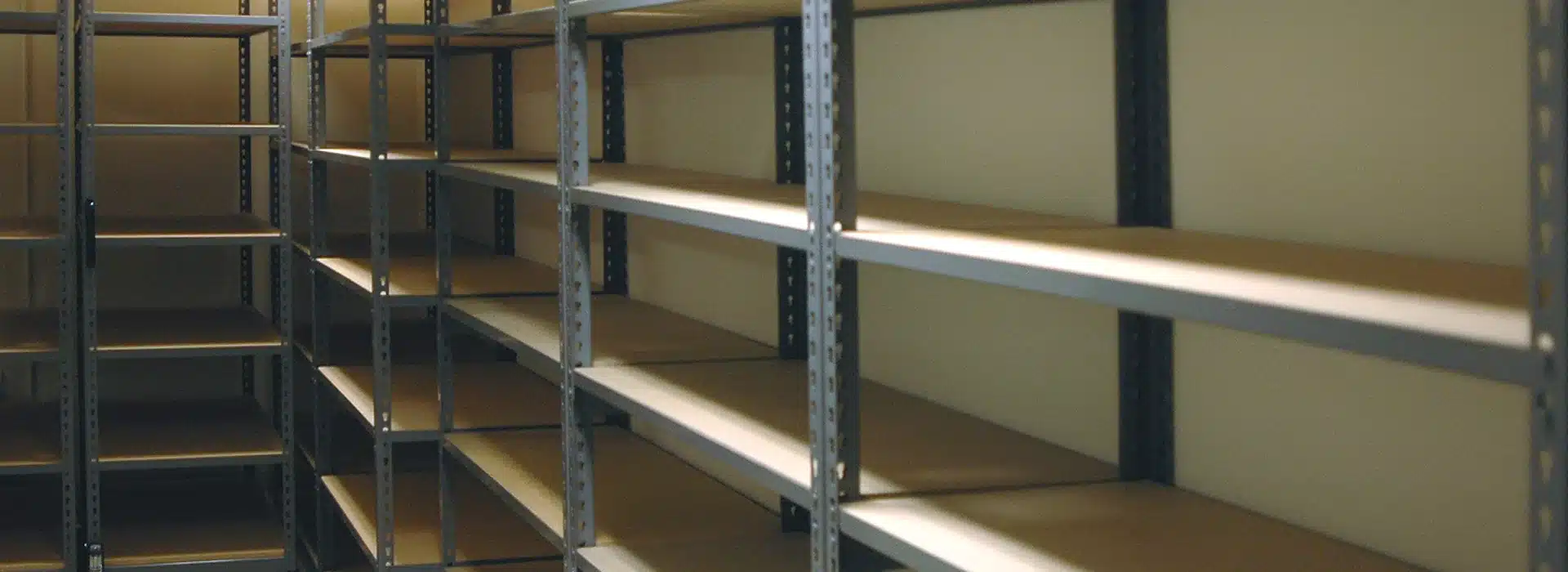

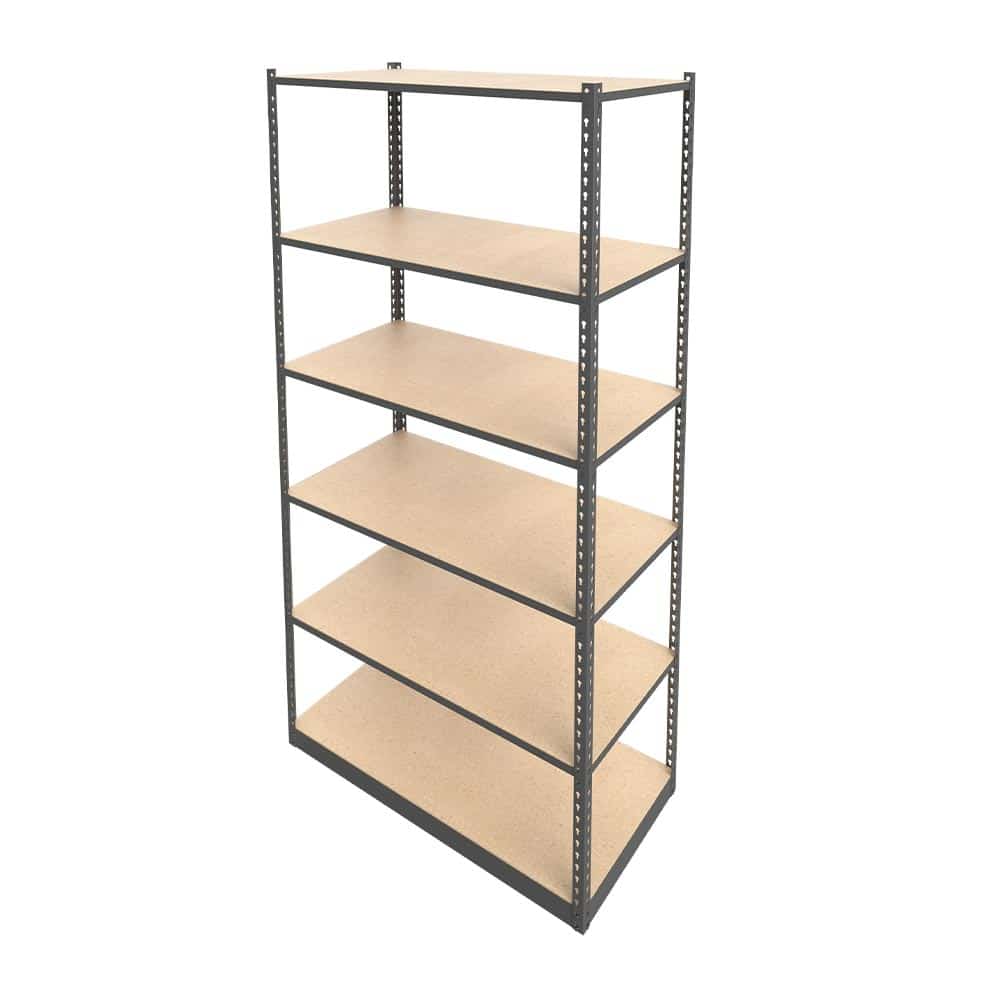

easy assembly with structural integrity
Rivet Style Shelving combines easy assembly with structural integrity. The positive rivet connection, integral to rivet shelving, is joined with a 14-gauge angle post to create a rigid framework ideal for high-density shelving. The two-way keyhole slots and snap-in rivet design, characteristic of rivet rack shelving, provide a simple installation process. There are no clips, braces, or additional hardware needed for this type of rivet racking. The shelves can be adjusted in 1-1/2” increments for optimal flexibility. The rivet shelving parts, essential for rivet rack shelving configurations, are available in a wide variety of sizes to fit specific storage requirements. Rivet Style Shelving has a weight capacity of 400 – 600 lbs. per shelf (depending on size). Rivet Style Shelving can be arranged as stationary (fixed) shelving configurations and/or mobile shelving configurations, making it a versatile solution in the category of rivet shelving.
Angle upright posts are constructed of 14 gauge steel formed into an angle formation of 1-15/32” x 1-15/32”. The posts are punched on 1-1/2” centers with key hole slots to accept rivets in beams.
Several shelf support configurations are available to meet a variety of applications and weight requirements.
Low Profile
Low profile double rivet shelf support is formed of 14 gauge steel for normal filing and 11 gauge steel for heavy applications. Supports have flat ears at either end and form into a channel with a depth of 1-1/8”.
Double Rivet
Z Beam Double Rivet
Wide Profile Double Rivet
All steel parts are thoroughly cleaned in a multistage washer. And integral part of this stage is the application of the phosphate coating. This results in superior paint adhesion and rust resistance. The finest grade of industrial enamels are applied with electrostatic spraying equipment. This ensures complete and even coverage. Coverage is capable of withstanding a minimum of 250 hours salt spray chamber as well as normal resistance of a quality finish.
Paint finish options include Medium Grey, Black, and White. Other colors are available upon request.
superior design and product quality
Tab Style Shelving enhances any area with superior design and product quality. The “Box” form shelf creates incredible durability and the powder coating minimizes sharp edges and provides an attractive, smooth finish. This shelving system is comprised of two 16-gauge uprights with tabs for mounting shelves and accessories. 18-gauge metal spreaders are riveted to the uprights creating a rigid framework. The metal “Box” shelves are constructed of 22-gauge steel with a weight capacity that varies based on size. Shelves are simply inserted into tabs on uprights without any additional hardware or clips making for easy assembly and relocation of this shelving. Standard paint finish is sand.
All parts are uniformly finished with a powder coating to ensure complete and even coverage and to provide a smooth, attractive surface.
The standard paint color is Sand.
Consists of two Posts & Spreaders riveted together into a rigid framework. Posts have lances for mounting shelves and shelving accessories such as hangbars and ladder holders.
Parts are uniformly finished with a powder coating to ensure completed and even coverage and to provide a smooth, attractive surface which minimizes sharp edges, reducing catches and snags. Standard color is Sand. Gray is also available.
Consists of two "U" shaped beams that mount to the lances on the uprights like the shelves.
Constructed of 22 gauge steel and is 50+% open. This shelf style is used when required per fire code or as a matter of preference.
Provides extra stability to shelving unit. Riveted together in the center and attached to the upright to form an "X" in the rear of the unit. It is constructed of 18 gauge steel.
Constructed of 22 gauge steel, with full wielded "Box" form in front and back of shelf forming channels on both ends. Shelves attach to lances on uprights without clips or hardware.
Baked-on enamel finish will last for years.
Back Stop snaps into keyhole slot on uprights with shoulder rivets (rather than simple lances) for added stability
Shelf covers shelf supports for a clean, contemporary look.
Optional single rivet shelf supports are pre-punched to attach to mobile carriages.
Return on bottom of upright allows shelving unit to be anchored securely to the floor.
Rigid framework is designed to support mezzanine system.
7-1/2” Dividers, adjustable on 2” centers, help to keep folders standing in an upright position.
Shelves are adjustable on 1-1/2” centers. Available with or without divider slots, in five widths and six depths.
With no exposed holes on uprights
Increase the rigidity of the backstop
Shelf supports snap into keyhole slot design on uprights.
3/4” Profile allows close shelf centers for filing, yet handles loads up to 400 lbs
Shelves have double-bend reinforcement on all sides. Available in 18 and 22-gauge steel.

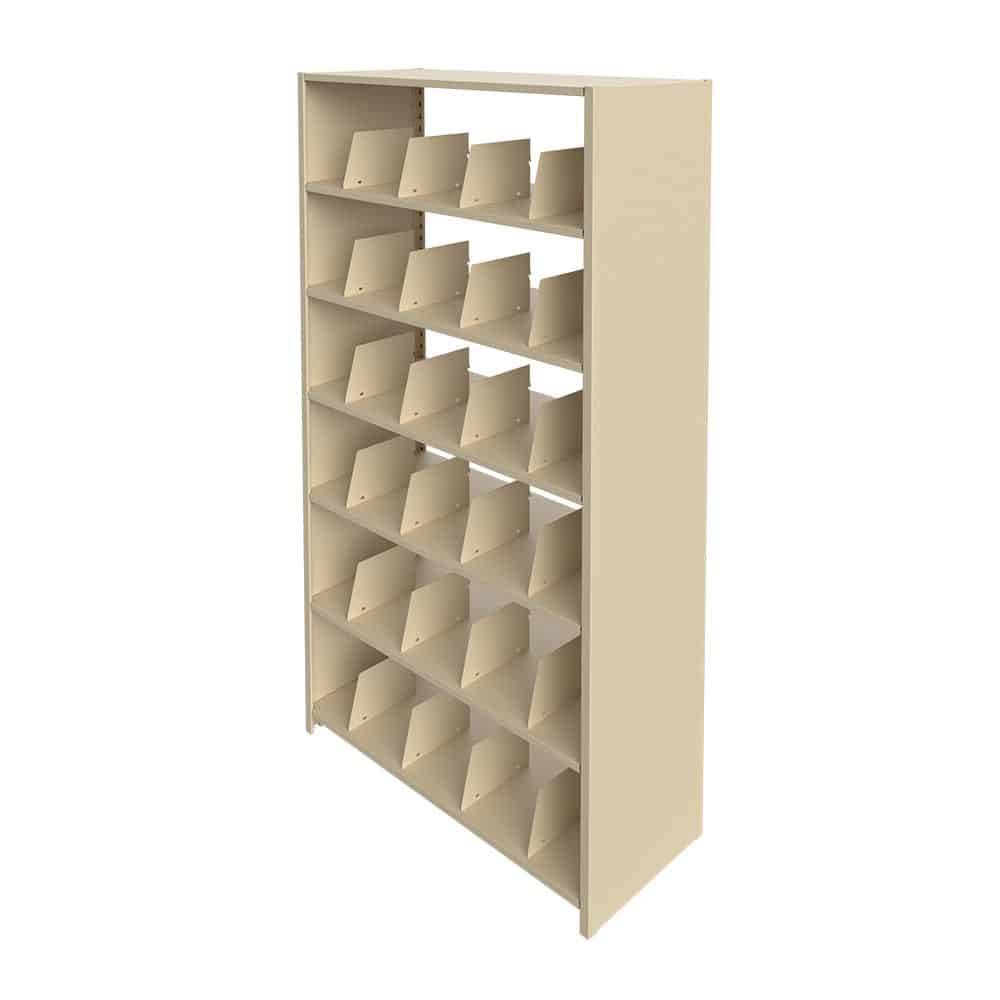

the most comprehensive shelving system
Four-Post L&T Shelving, incorporates shelving units with slotted shelves, making it one of the most comprehensive systems of its kind. It is incredibly durable, easily accessible and attractively designed. With its double wall construction and unique interlocking keyhole design for slotted shelves, shelf supports are secured inside the wall leaving a smooth, clean appearance. This makes the shelving ideal for museums, school band/orchestra equipment rooms, and confidential records. Additionally, Pipp’s Four-Post L&T Style Shelving with slotted shelving can be easily expanded as your business needs grow.
The shelving is made from only the finest materials and highest quality workmanship. The sheet metal is commercial quality steel fully pickled or equivalent.
Open uprights are formed of 18-gauge cold roll steel, rolled into a 2” wide hollow “T” or 1” wide hollow “L” shape with keyslot holes punched on 1-½” centers along the inner wall. There are no holes on the face of the post. The front and back posts are joined by welded 18-gauge 3” high spacers to maintain the required distance apart and add rigidity to the assembly. Top and bottom spacers have 11/16” stiffening flange with two ¼” holes to allow securing to the floor or mobile base. Center spacers are flat strips. All uprights 64” high or less plus uprights 76” to 88” high that are less then 30” deep have three spacers. All other uprights have four spacers. The “L” uprights are used for row ends and the “T” uprights are used as common intermediate uprights.
Closed uprights have the same specification as open uprights except the spacers are replaced by welding a 24-gauge closure sheet with a stiffener flange at the bottom of the closure sheet. The flange has two ¼” holes to allow securing to the floor or mobile base.
Shelves are formed of 22-gauge cold roll steel with 25/32” high channel formation on all sides. Return flange is formed 120° permitting easier installation. Optional Slotted Shelves have shelf divider slots punched on 2” centers. Two supports required per shelf
Shelves are formed of 18-gauge cold roll steel with 1-7/32”” high channel formation on all sides. Return flange is formed 120° permitting easier installation. Shelves available punched with divider slots or holes on 2” centers for use with X-Ray X or B type dividers. Two supports required per shelf.
Shelf supports are formed of hot roll pickled steel, 36” from 14-gauge and 42” & 48” from 11-gauge, 11/16” high with flat ears at either end. Semi-tubular rivets with 7/16” diameter head is staked onto ears, four rivets for each support, to set into the keyslot holes of the Open and Closed Uprights.
Shelf supports are formed of 11-gauge hot roll pickled steel, 1-1/8” high with flat ears at either end. Semi-tubular rivets with 7/16” diameter head is staked onto ears, four rivets for each support, to set into the keyslot holes of the Open and Closed Uprights.
All steel parts are thoroughly cleaned in a multistage washer including the application of a phosphate coating. This results in superior paint adhesion and rust resistance. A durable baked on Powder Coat is applied for a high-quality finish. Coverage is capable of withstanding a minimum of 250 hours salt spray test per (ASTM) method number B-117 in a salt spray chamber as well as all normal resistance of a quality finish.
The standard paint finishes are Light Grey and Sand. Other finishes are available upon request.
Options include: Solid Metal Shelves, Slotted Thin Shelf, Plain Thin Shelf, Slotted X-Ray Shelf, Punched Heavy-Duty Shelf, Plain Heavy-Duty Shelf, Finished End Panels, Shelf Dividers, Variety of laminate finishes with aluminum extrusions.
Solid Color Laminate End Panel Finishing Options:
Wood Grain Laminate End Panel Finishing Options:

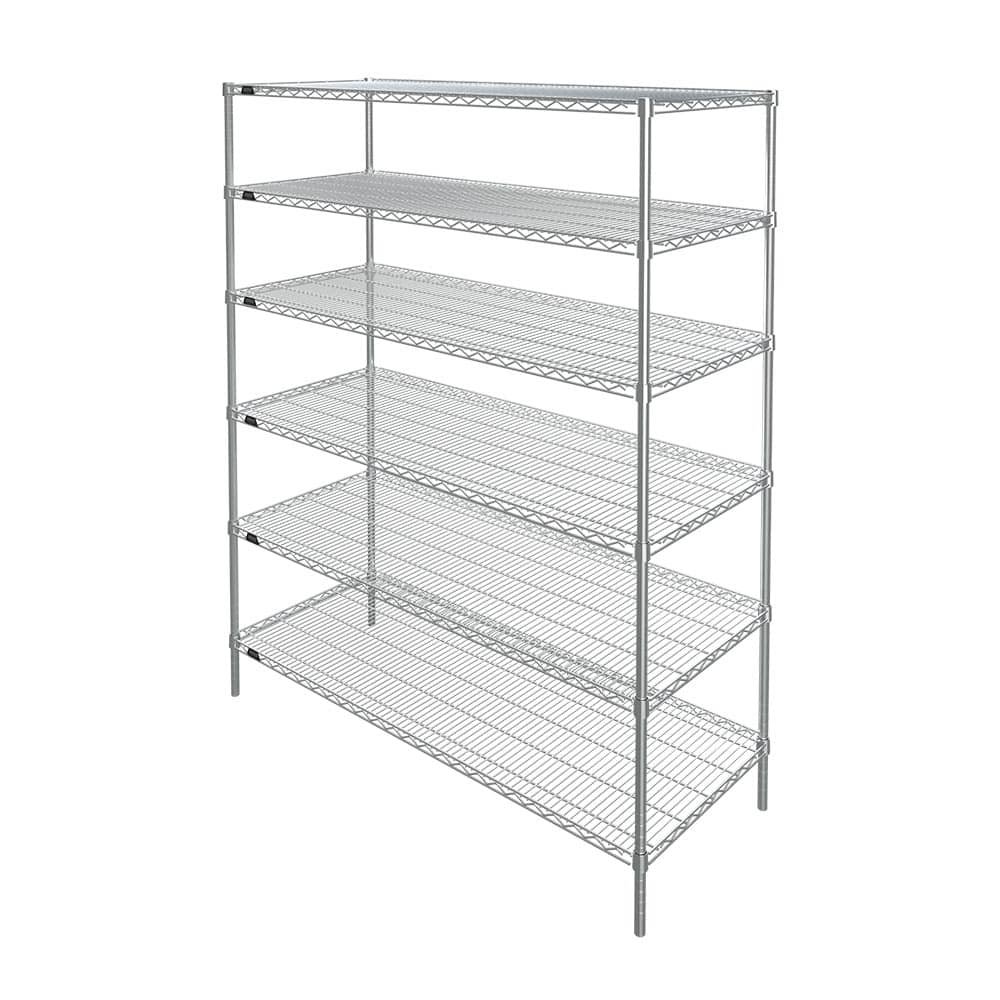

NSF approved
Wire Style Shelving is NSF approved. Wire shelving reduces dust build-up, allows free light and air circulation, increases sprinkler effectiveness and improves visibility. It is fast and easy to install with no special tools required. Wire shelving can be safely secured to Pipp mobile carriages uses Intermediate Wire Post Brackets to create a lateral or compacting mobile configuration. Wire Style Shelving provides the strength, durability and cleanliness needed in many storage markets, making it the appropriate storage solution for healthcare, hospitality and restaurant storage applications and other sanitary or clean environments.
16 gauge 1" round tubing marked every 5". Each upright has adjustable feet for leveling. "S" Hooks and Post Clamps available to join units back-to-back or side-to-side. Standard heights are 63", 74" and 86"
Constructed of stainless steel with weight capacity ranges of 400-850 lbs. per shelf. Shelves are adjustable on 1" increments. Shelf adapters secure each corner to upright.
Snap into the grooves of the uprights and the shelf slips over the tops surface securing the shelf and adapter to the upright. Each shelf comes with 4 shelf adapters.
Run front to back allow items to slide on and off shelves smoothly.
Shelf corners are fully lapped and welded for extra strength. Combined with sides that incorporate triple-bend construction, shelves can support up to 750 lbs (varies by size).
Available to help meet fire codes when storing flammables by allowing water from overhead sprinklers to reach all levels of the unit.
Shelves can be adjusted quickly and easily in 1" increments to make maximum use of vertical storage space. Uprights feature a square hole every third hole for easy shelf alignment.
Prevents materials from falling off, as well as protecting items from dust and contaminants.
Provides extra stability to shelving unit. Riveted together in the center and attached to the upright to form an "X". It's constructed of 18 gauge steel.
Can be places anywhere on a shelf instantly. Built-in label holders for addition parts identification.
Helps prevents items from accidentally falling off the shelves. Ideal for storing small or fragile loose items.
Great for storing packaged items, containers and tools. Allows easy access to items.

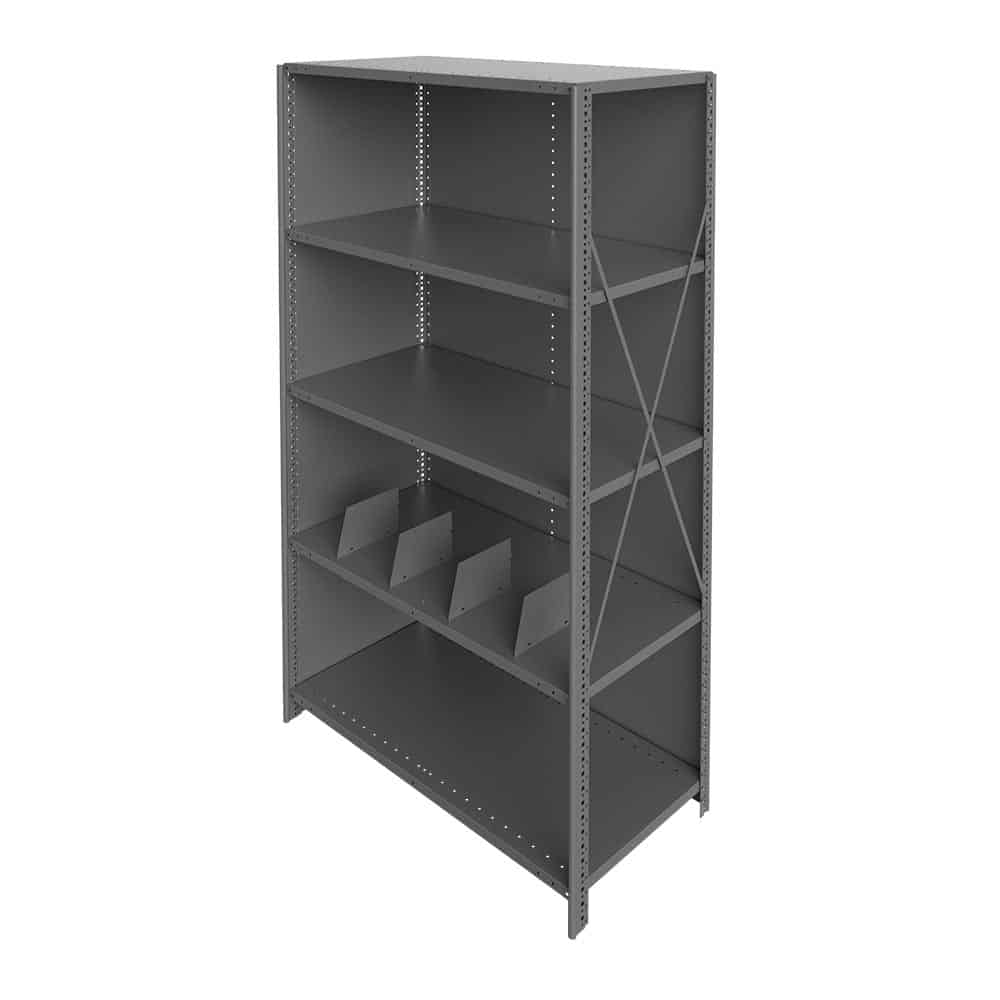

heavy duty steel shelves
Clip Style Shelving is the system of choice when heavy duty steel shelves are required. It is a strong, versatile, and cost-effective shelving system. Clip Style Shelving features steel shelves with a welded box beam construction, lapped/welded corners, and triple bends on the side flanges. Shelves come in three different styles to match a range of load capacities up to 1,000 pounds per shelf. The shelves attach with metal shelf clips and are available in eighteen different sizes. Metal shelves are available in 20 and 22 gauge steel, and circle perforated shelves are available in 22 gauge steel. Accessories like bin dividers, shelf drawers, panel kits, locking doors, label holders, and mezzanine components help you customize the system to your needs.
The perforated shelves are constructed of the same materials and have the same construction as the standard Q and Q2 shelves. The interior of the shelves are perforated with 0.375” diameter holes on 0.3” horizontal offset centers and 0.36” vertical offset centers. The water flow through for the perforated area is 51%. This is only for the perforated area not the total surface. The box form is considered a structural component and dos not require perforation.
Shelf clip shall be constructed of 13 gauge steel formed into a channel with two hooks to engage upright. Hooks on clip shall be a minimum of 3/8” wide and must engage into post a minimum of ¼”. Shelf clip shall engage upright post at two points and hooks shall be on 1” centers or more to give added strength and rigidity. Shelf clip shall be plated with durable coating to give extra life to the clip.
Sway braces are of 11 gauge steel, installed to form an “X” on both end and sides and shall be adjustable on 1” centers.
Panels shall be formed of 24 gauge steel.
Bulk Storage Units are fabricated of high quality, cold rolled carbon steel, free of scale or rust and fully pickled. Exposed edges, corners and surface areas are from of sharp edges and all workmanship is of the highest quality as measured by the industry.
All steel components shall be thoroughly cleaned and phosphatized from rust resistance in a five-stage pre-treatment process. A high grade of polyester/epoxy powder paint is to be applied electrostatically with a gloss reading of between 55 and 65. The finish shall have a salt spray rating of 250 hours or more.
Shelves shall be constructed of 20 or 22 gauge steel with full welded “BOX” formation in front and back of the shelf and shall have the formed channels on both ends. All corners shall be fully lapped and welded at two points in each corner. The “BOX” formation shall be welded on a minimum of 3” centers and the entire length of the box. All shelves shall have a profile height of 1 5/16”. Shelves shall be designed to allow for use of shelf clips or to allow for shelf to be bolted to the uprights.
Heavy-Weight Shelving
Bulk Rack Shelving is a great choice for storing heavy, bulky items. It allows clear and convenient access from front or rear. Shelf spans of 96” W x 48” D are available. Uprights are pre-welded for fast assembly and strength. Each unit can handle load capacities up to 10,000 pounds. Beams incorporate a unique tapered finger design attachment that locks beams safely onto uprights. Two styles of beams and deck supports lets you choose between several different shelf options.
Rolled formed steel box beams provide added strength at the front and back of shelf edges.
Choose between wire and particle board.
Beams simply slide into place. Assembly takes less than half the time of most other shelving system.
Welded uprights makes installation fast and convenient
Plywood Beam is used to hold wood decking or currugated steel decking and is reinforced with a plywood support angle.
Hi-Gloss, Durable Powder Coat Finish
Between 16,000 and 37,000 lbs.
Capacity ranges from 670 lbs. to 12,600 lbs a beam.
heavy duty storage needs

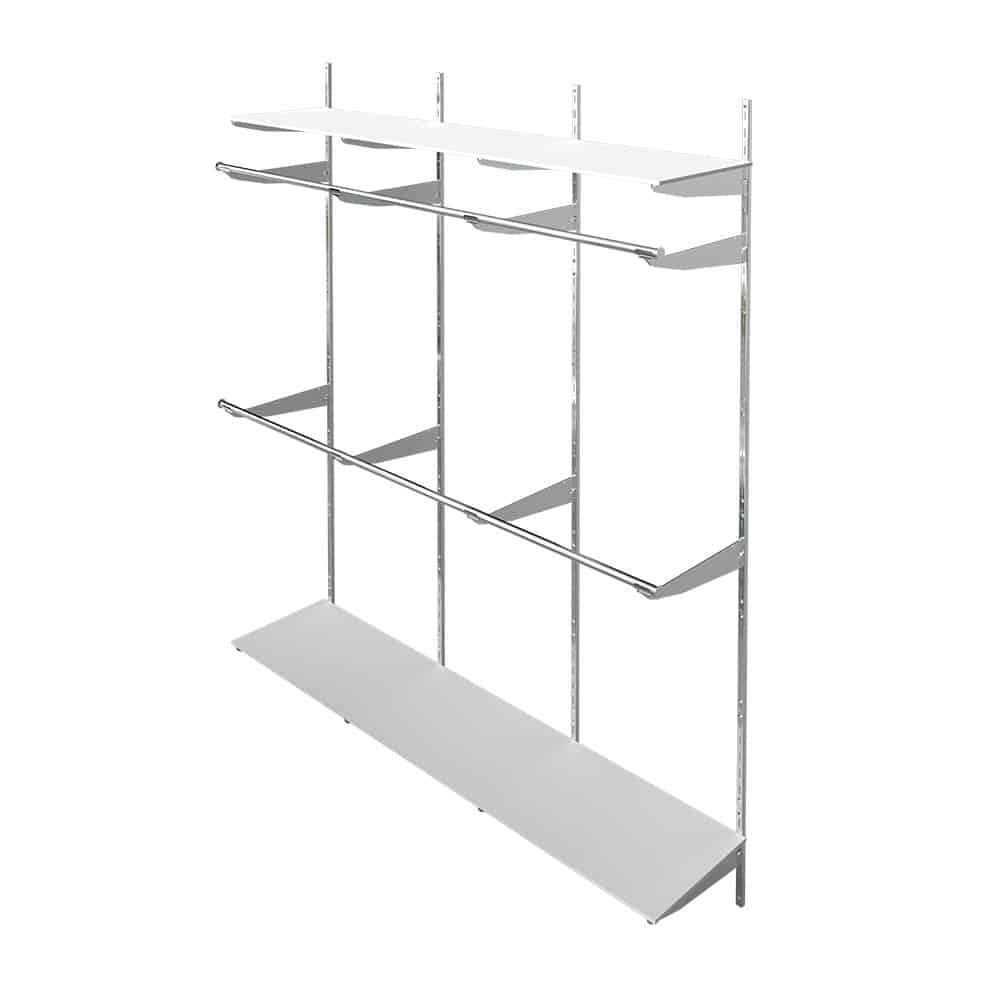

Maximize Your Wall Space
Perimeter Hardware provides storage solutions for the walls of your stockroom, making them an effective use of space. We carry a comprehensive selection of wall standards and brackets; notably, the superior heavy duty line, which holds significant weights for substantial loads.
3/4" Thick
Single Slotted: 1" Slots - 2" O.C.
Material: 1/8" Thick Steel
Finish: Zinc
Standard Sizes: 12", 14", 16", 18", and 24" (Other Sizes Available)
Material: 11 GA Steel
Finish: Zinc
NEXT STEP
Complete your storage system by pairing your shelving systems with one of Pipp Mobile’s various carriage options. These carriages seamlessly integrate with the shelving for easy movement and are available in a variety of sizes and configurations to meet all of your storage needs.
As a division of Pipp Mobile, IRSG offers our customers the most comprehensive line of Inventory Processing & Transport Solutions.
Contact us to learn how we can help transform your storage space.
